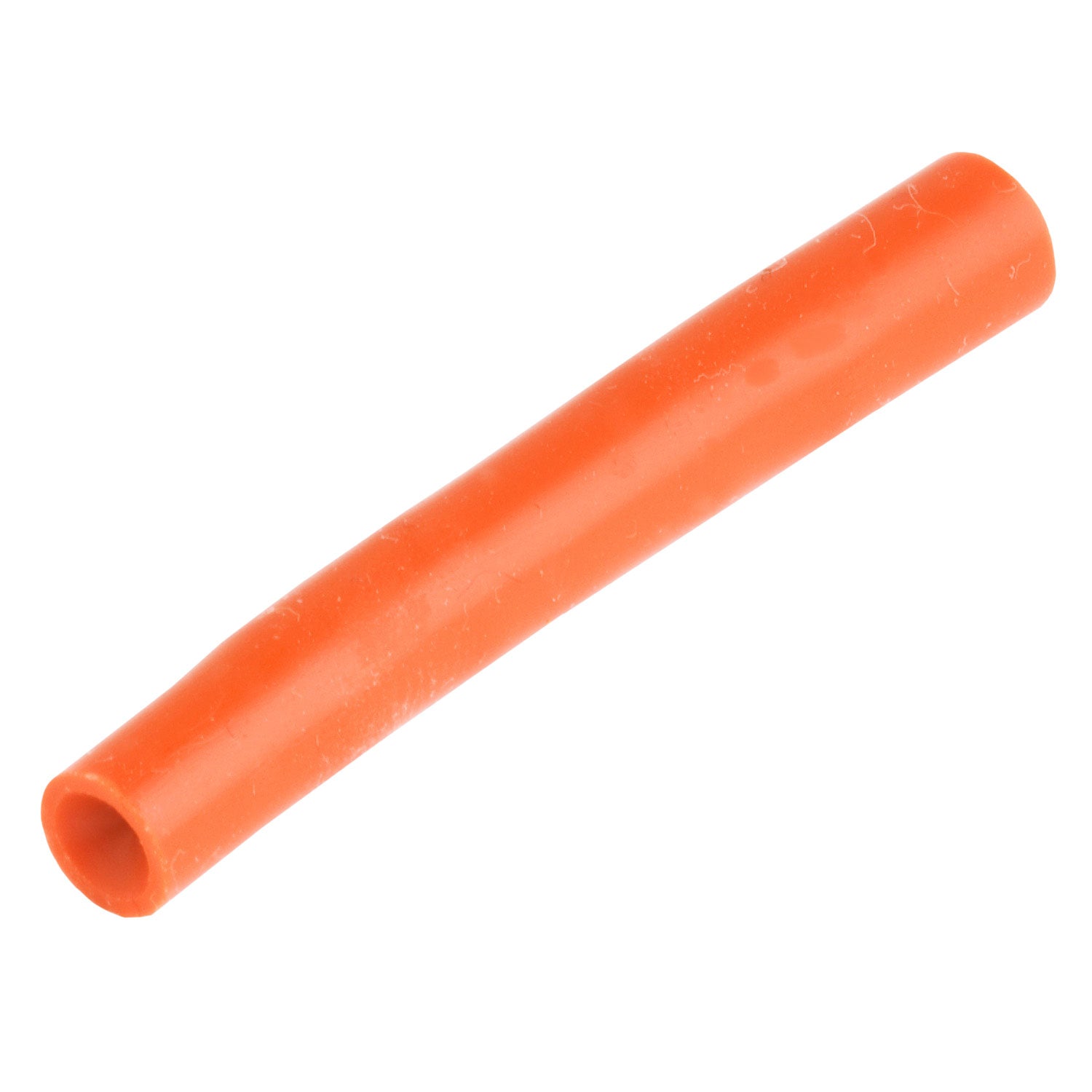

JS-16-00 - Deutsch Jiffy Splice - Size 16 Pin/Socket - In-Line, 13 Amps, Silicone Rubber, Orange

Deutsch - Jiffy Splice
Most splice installations require an assortment of tools to properly perform. Once finished, they can also be very difficult to remove or change. Wires can get frayed, damaged, or even ruined from these slow and sloppy installations. With the Deutsch Jiffy Splice these problems are no more! Simply crimp one wire into a Jiffy Splice pin and the other into a Jiffy Splice socket, and slide both into a connector until you hear them snap. Its that easy and quick! In addition, the wires underneath are not damaged in this process, and if you ever need to remove one or both of the wires, simply insert a Jiffy Splice extraction tool and pull the desired wire out of the splice connector. This makes future repairs and installations even easier than the first time!
- Part Number:JS-16-00
- Series: Jiffy Splice
- Insulation:.100-.134 [2.54-3.40]
- Wire Size:14, 16, 18, 20
- Keyed: No
- Color: Orange
- Material: Silicone Rubber
- Shape: Circular
- Cavities:1
- Contact Size:16
- Current Rating:13
- Holds Pin/Socket: Pin, Socket
- Flange/In-line/PCB Mount: In-line
