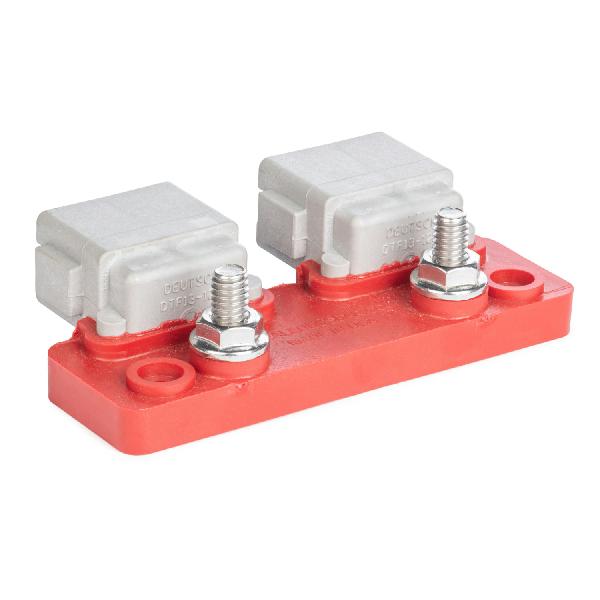

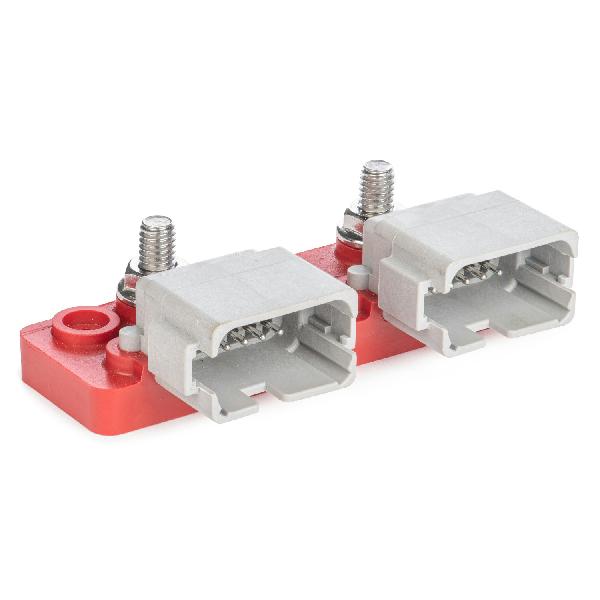

SBB-24R - Sealed Buss Bar - 24 Cavity, Right Angle Bus , Red

Sku: SBB-24R
$94.50
Maximum quantity available reached.

Sealed Buss Bars

Have you spent the resources to seal your electrical system at the devices only to leave the job unfinished? With traditional bus bars you have done just that. They have many individual connections which can be prone to failure. They have exposed copper plates that may have tin plating protection or none at all. These plates will corrode which will require replacement. Sure there are sprays that will slow the corrosion down, but it will not address the root cause—exposed metal. The Sealed Bus Bar encapsulates the conductive plate copper leaving the only exposed metal the stainless studs for the connections to the battery.

Ratings: 300A @ 48V DC
Stud: 2 @ 5/16-18 Stainless Steel
Connector: Sealed to IP67
Deutsch Mating Connector: DT06-12SA
Amphenol Mating Connector: AT06-12SA
Molex Mating Connector: 93445-6212
Mounting Holes: #10 Pan head
Bus Material: C1100 Electrolytic Copper
Base: RETPU – Injection Molded
