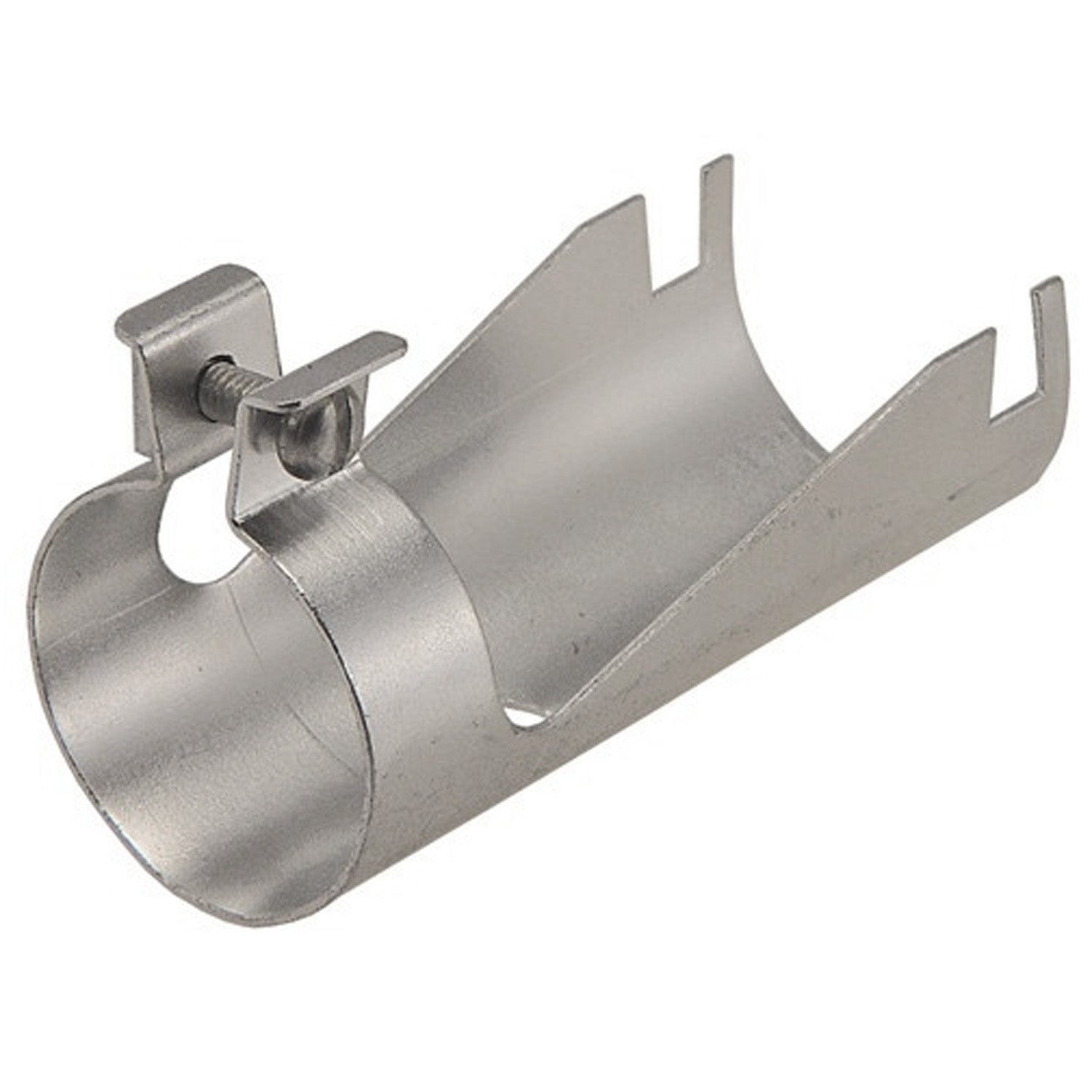

WHDS-24-1 - HD30/HDP20 Series - Strain Relief - 24 Shell Straight, Silver

The Deutsch HD30 & HDP20 Series offer several backshell options to meet your design needs. Backshell options include straight or 90 degree angle and plastic or metal. The metal backshells work best with the HD30 series. It is attached to the rear of the connector using an adjustable screw and is secured to the wire bundle with the use of a tie wrap. The plastic backshells work best with the HDP20 Series and attach to the rear of the connector with either a clamshell snap closure or by screwing them on to a threaded adapter. The rigid, durable backshells offer a high level of protection, provide strain relief, and improve aesthetics.

 Part Number WHDS-24-1
Series HD30 Series
Keyed No
Color Silver
Material Steel
Shape 180°
Connector Style Plug, Receptacle
Shell Size 24 shell
Accessory y
Accessory Type Strain Relief
