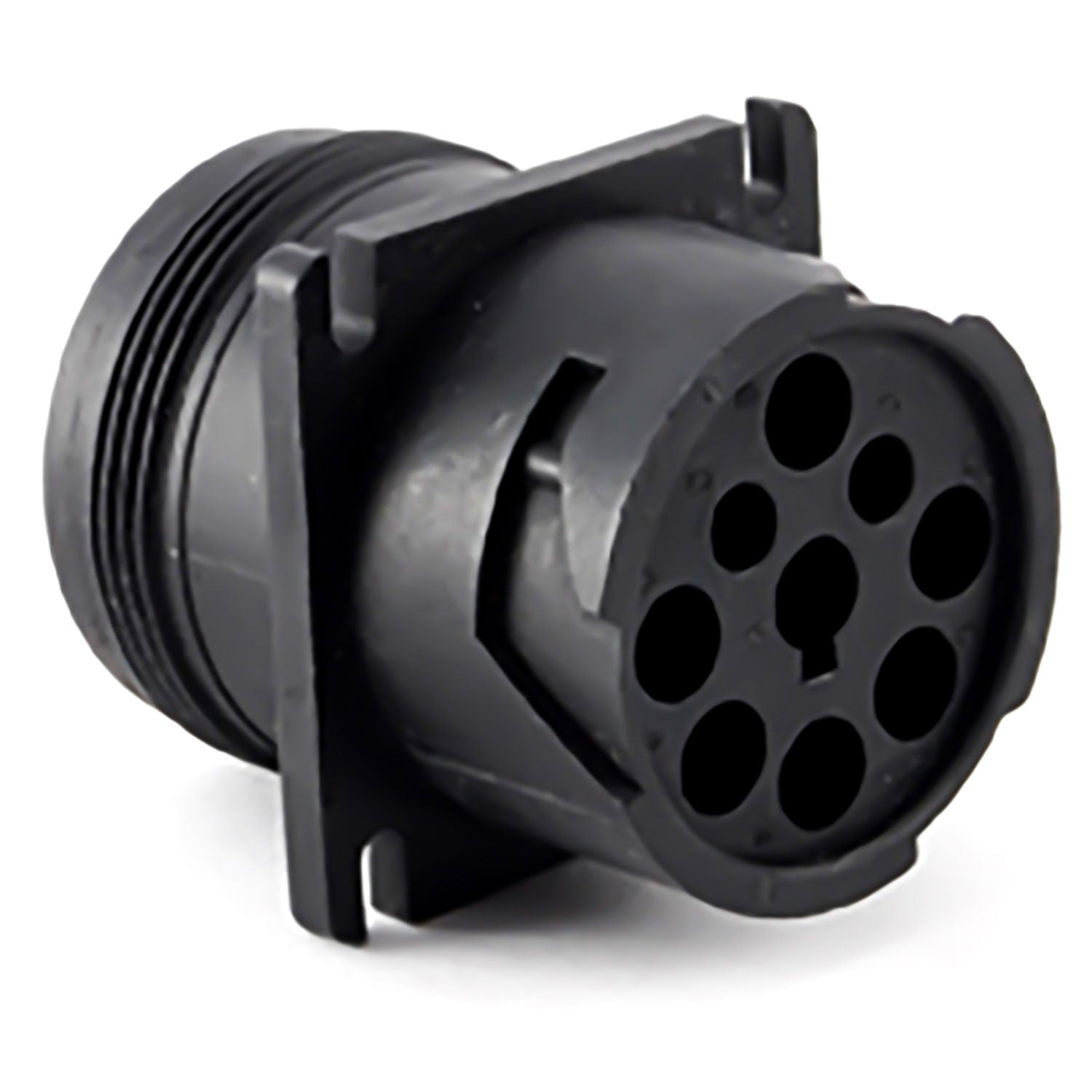

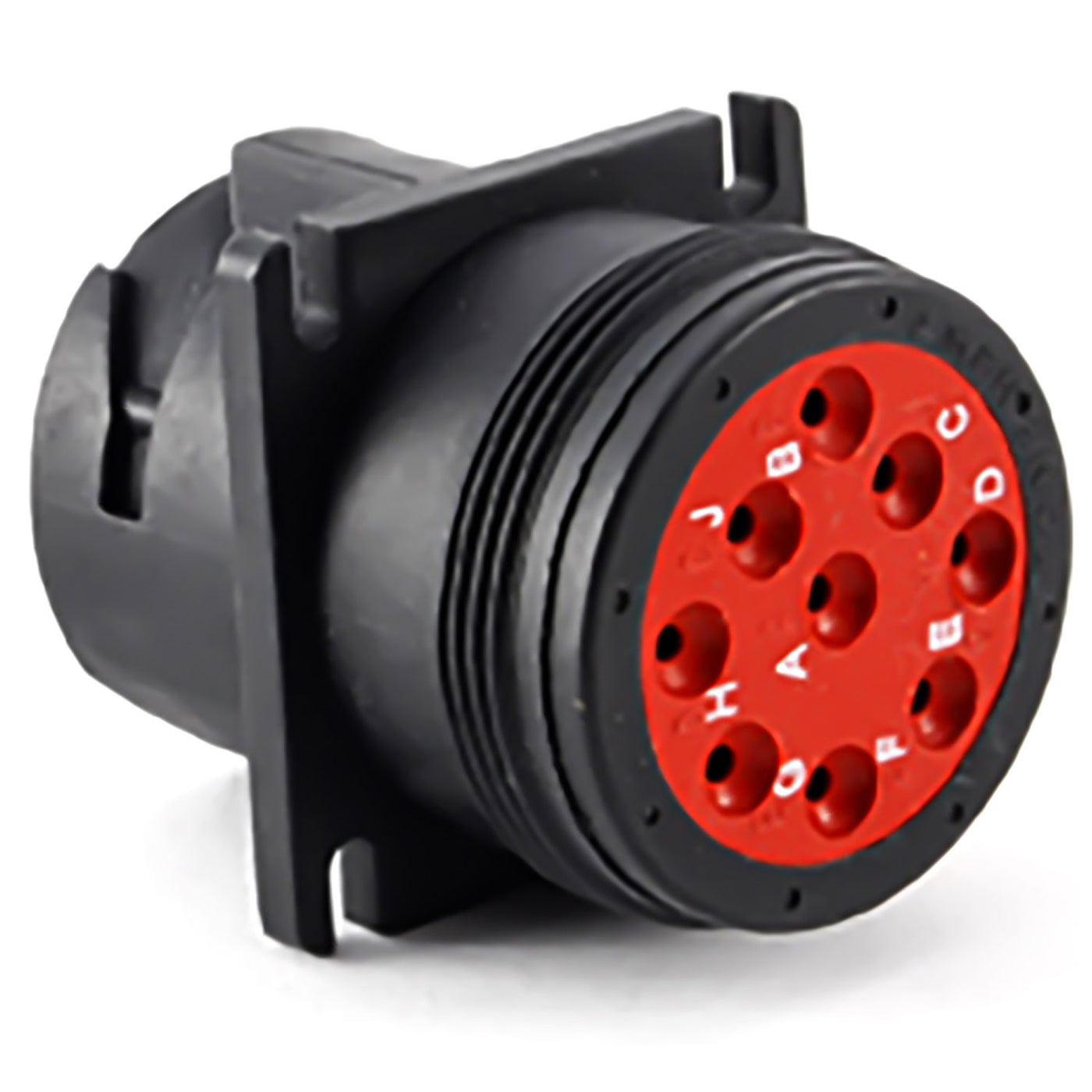

AHD10-9-1939P - AHD Series 9 Pin Receptacle - Flange, Black

Sku: AHD10-9-1939P
Vendor: Amphenol
$6.60
Maximum quantity available reached.

AHD10-9-1939P : Amphenol - AHD Series, 9 Way Receptacle w/ Flange, Black

Amphenol AHD-Series Connectors were designed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. These connectors are ideal for use in situations where controlled or uncontrolled environmental conditions exist.


Amphenol AHD Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

 Part Number AHD10-9-1939P
Product Type Receptacle with Threaded Rear Flange
Number of Positions 9-Way
Contact Size 16
AWG 14-20
AMP 13A
Contact Type Pin
Color Black
Mating Part(s) AHD16-9-1939S and AHD17-9-1939S
Seal Diameter 2.54mm (.100") - 3.81mm (.150")
Wire Range 14-20 AWG
