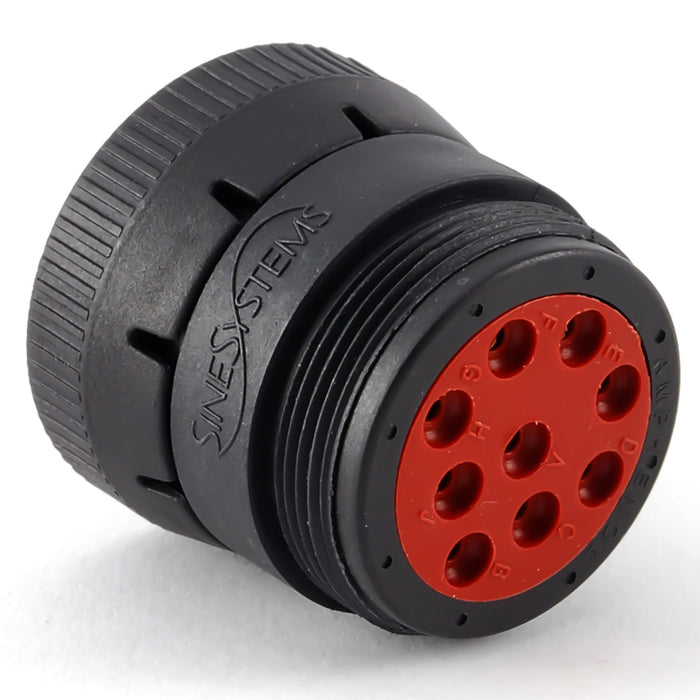

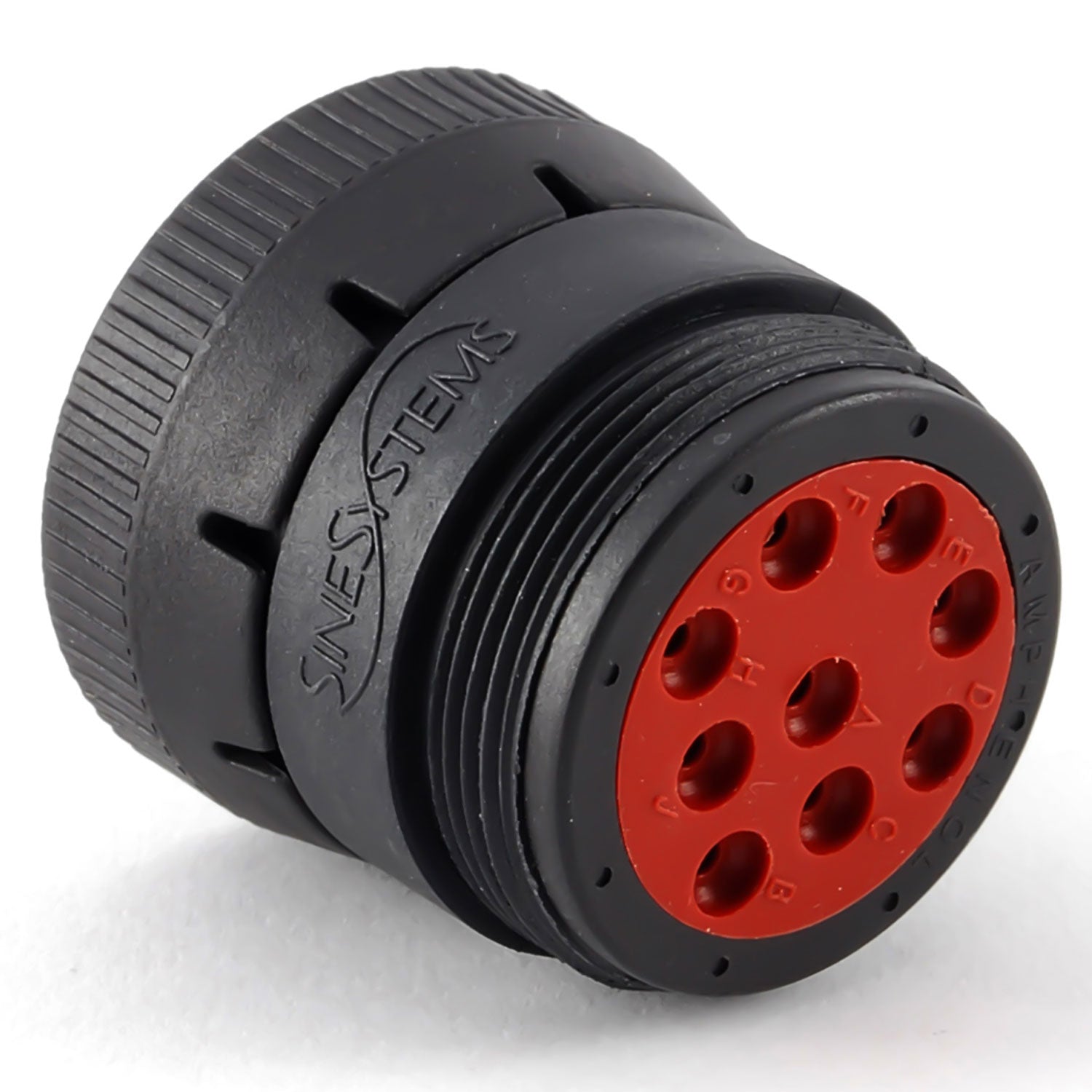

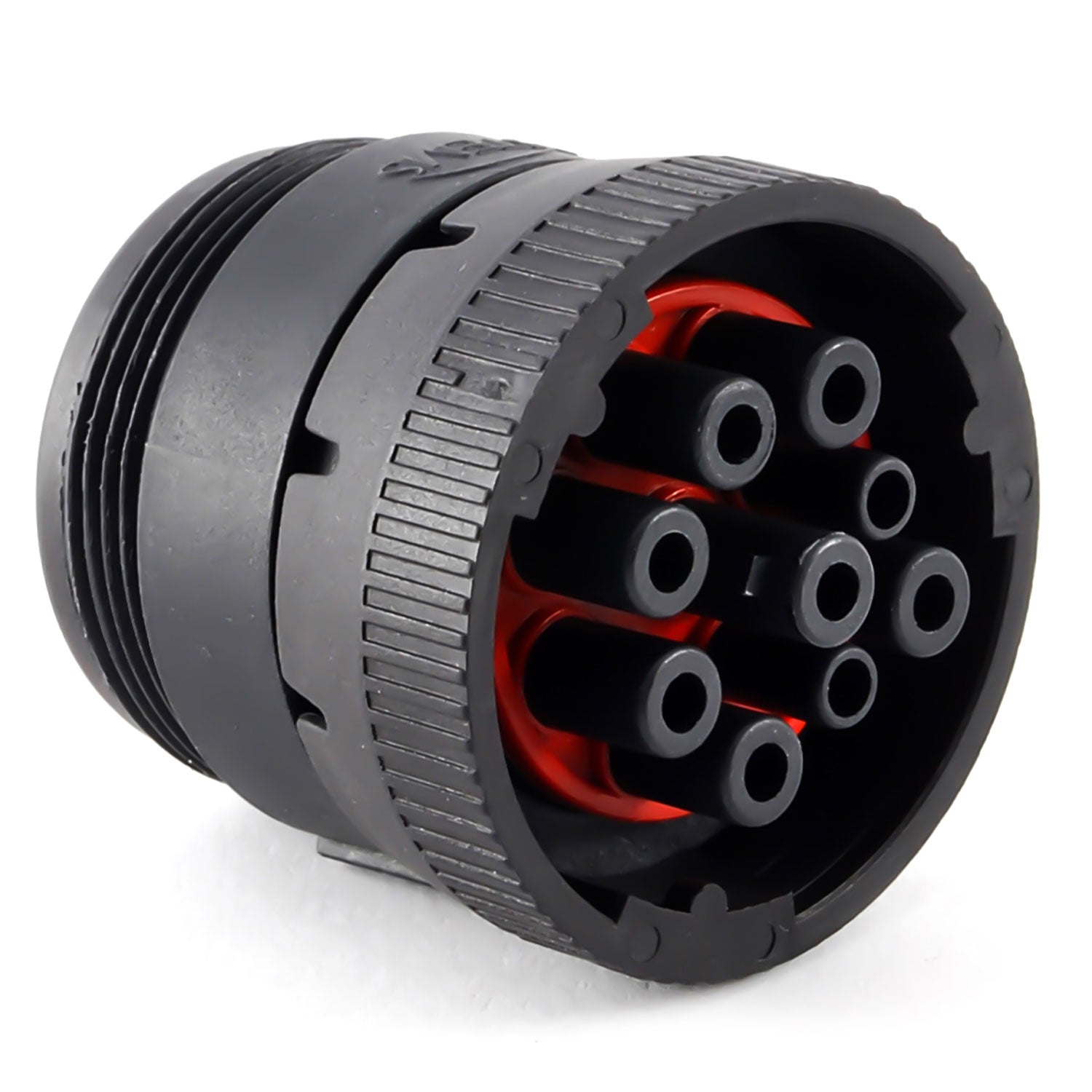

AHD16-9-1939S - AHD Series - 9 Socket Plug - Locking Ring, J1939, Black

Sku: AHD16-9-1939S
Vendor: Amphenol
$7.30
Maximum quantity available reached.

AHD16-9-1939S : Amphenol - AHD Series, 9 Way Plug w/ Locking Ring, Black

Amphenol AHD-Series Connectors were designed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. These connectors are ideal for use in situations where controlled or uncontrolled environmental conditions exist.


Amphenol AHD Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

Part Number AHD16-9-1939S
Product Type
Plug with Threaded Rear, J1939
Number of Positions 9-way
Contact Size 16
AWG 14-20
AMP 13A
Contact Type Socket
Color Black
Mating Parts(s) AHD10-9-1939P AND AHD14-9-1939P
Seal Diameter 2.54MM (.100") - 3.81mm (.150")
Wire Range 14-20 AWG
