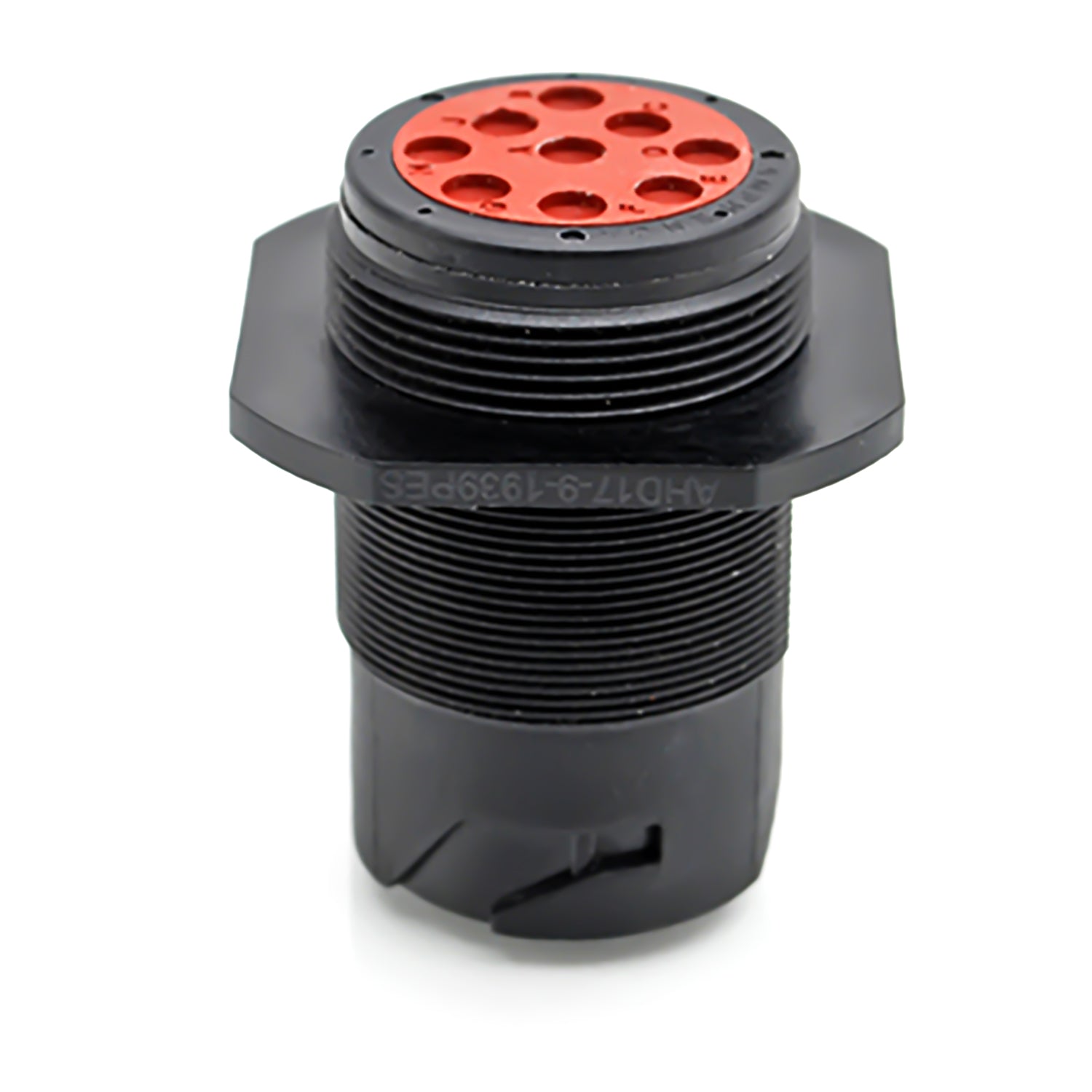

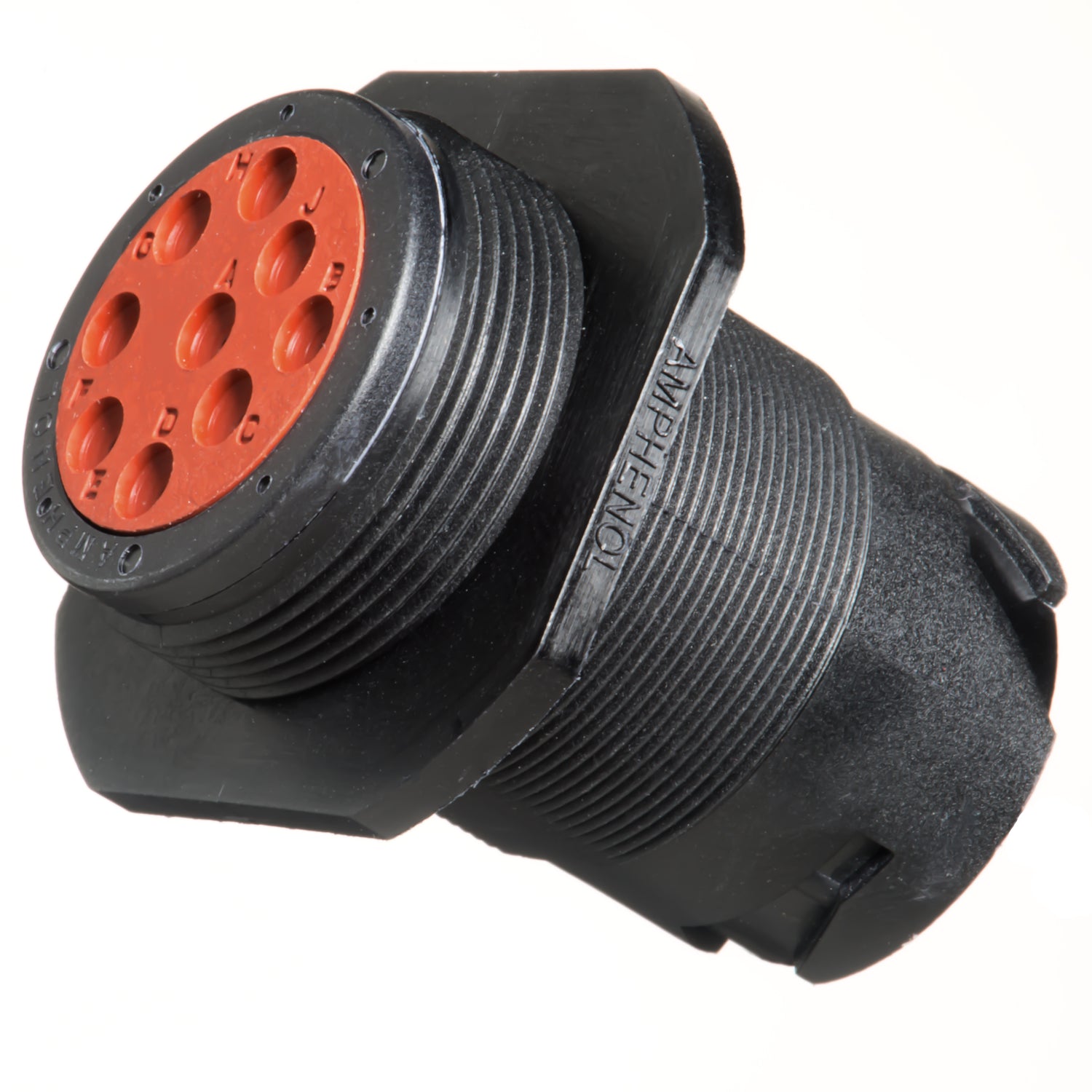

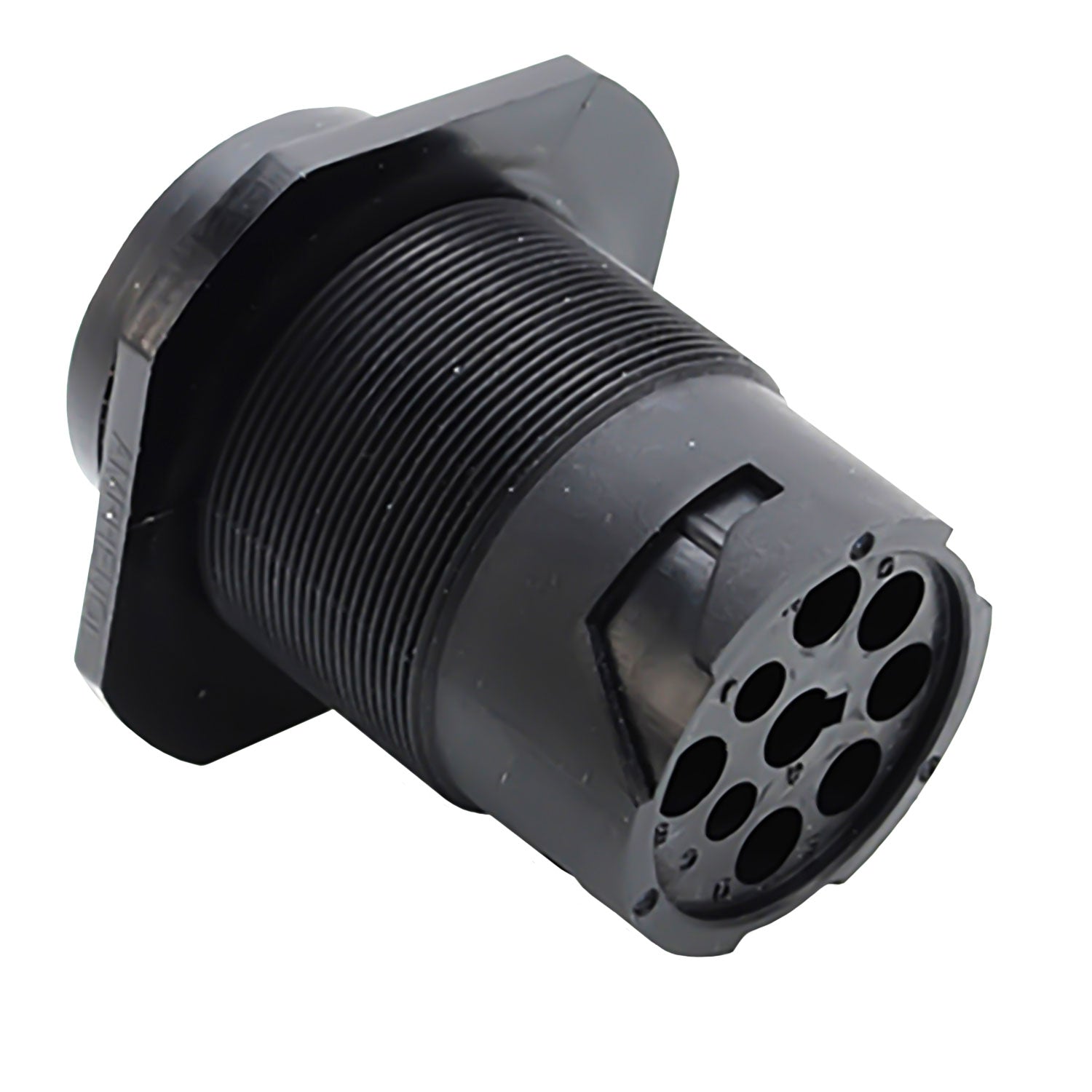

AHD17-9-1939PES - AHD Series - 9 Pin Receptacle - Jam Mount Diagnostic, Black

Sku: AHD17-9-1939PES
Vendor: Amphenol
$6.60
Maximum quantity available reached.
Amphenol

Jam Mount Diagnostic Receptacle

9-Position Jam Mount Diagnostic Receptacle Size 16 Pin Contacts only.

Specifications
Part Number AHD17-9-1939PES
Product Type Jam Mount Diagnostic Receptacle
Number of Position(s)  9-Way
Contact Size 16
AWG 14-20
AMP 13A
Contact Type Pin
Color Black
Mating Part(s) AHD16-9-1939S80 & AHD16-9-1939S8R
Seal Diameter 2.54MM (.100") - 3.81mm (.150")
Wire Range 14-20 AWG
