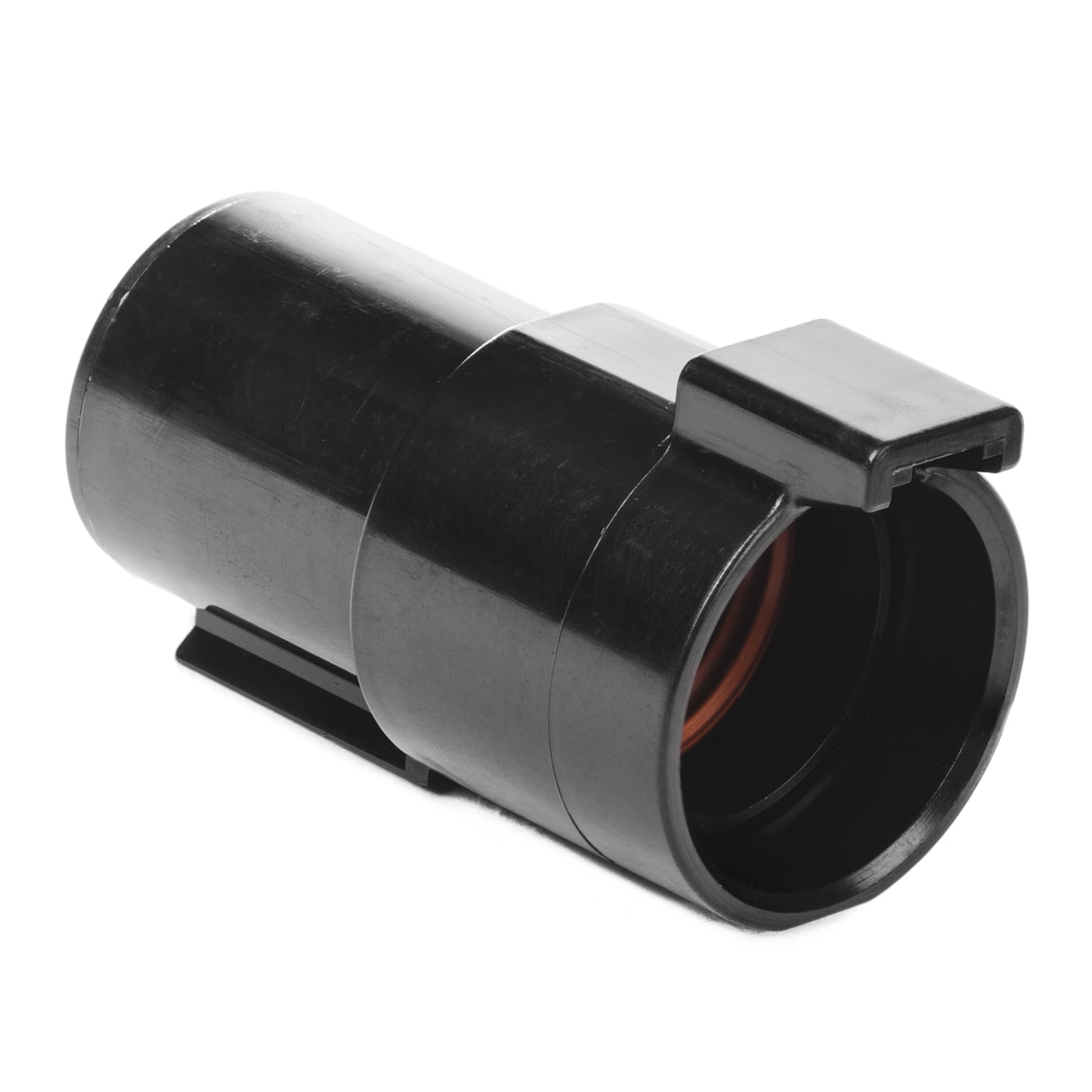

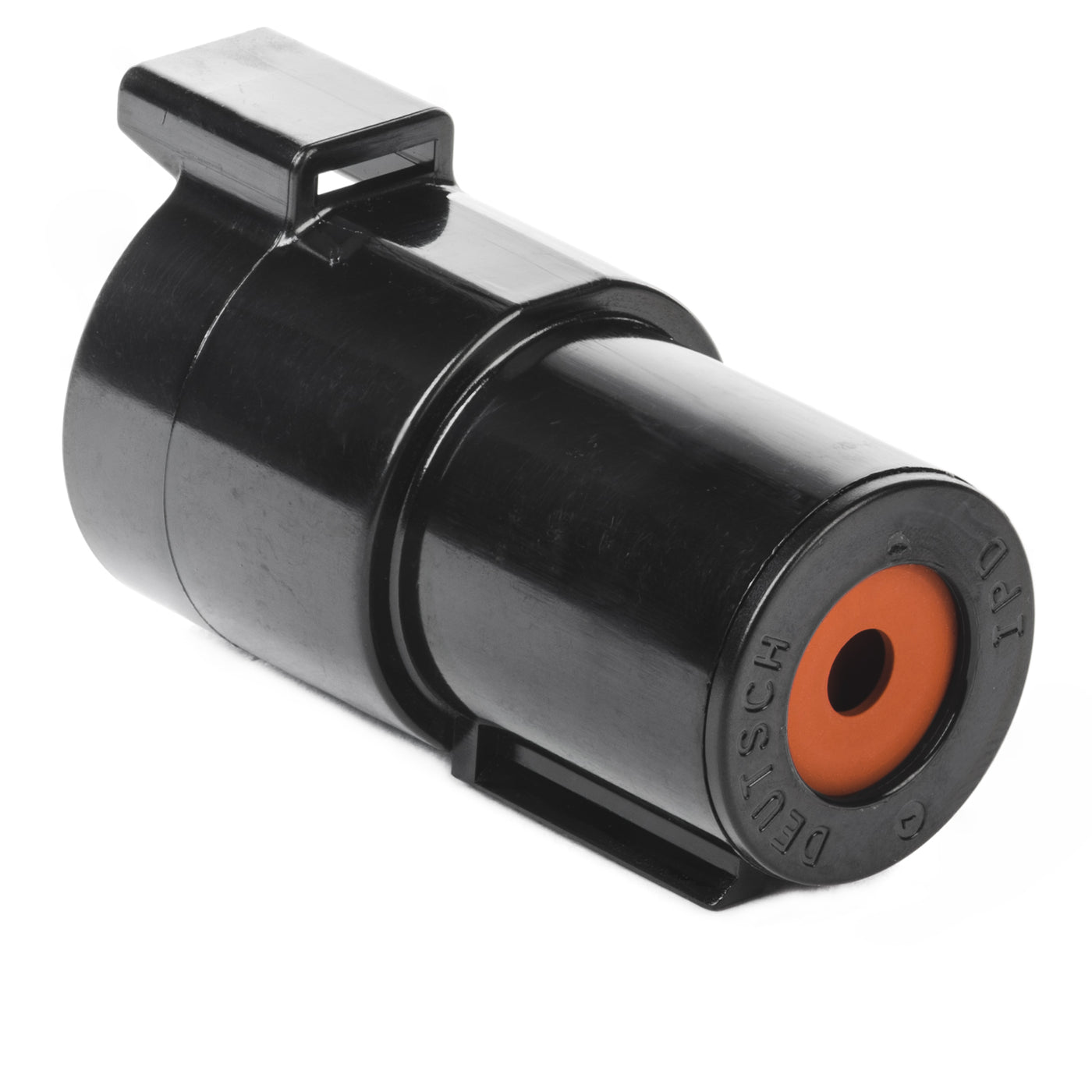

DTHD04-1-4P-E003 - DTHD Series - 4 Pin Receptacle - In-Line, End Cap, Black
Deutsch developed the DTHD Series for those applications requiring a complete, environmentally sealed, single power circuit termination. DTHD plugs and receptacles can be permanently assembled with thermoplastic end caps that prevent removal of the silicone wire seal grommets. Designed for diesel engine, electronic fuel injectors, automatic transmissions, ABS brakes and other applications that involve fuel and oil exposure. These end caps provide the additional reliability required for critical wiring Circuits.
DTHD connectors are single terminal connectors for heavy duty applications. Easy to install, environmentally sealed and compact in size, they are a simple, field serviceable alternative to a splice. This DTHD receptacle takes a size 4 pin and is rated as 100 amps of continuous current. Black. The E003 modification provides a protective end cap at the rear end of the connector.
