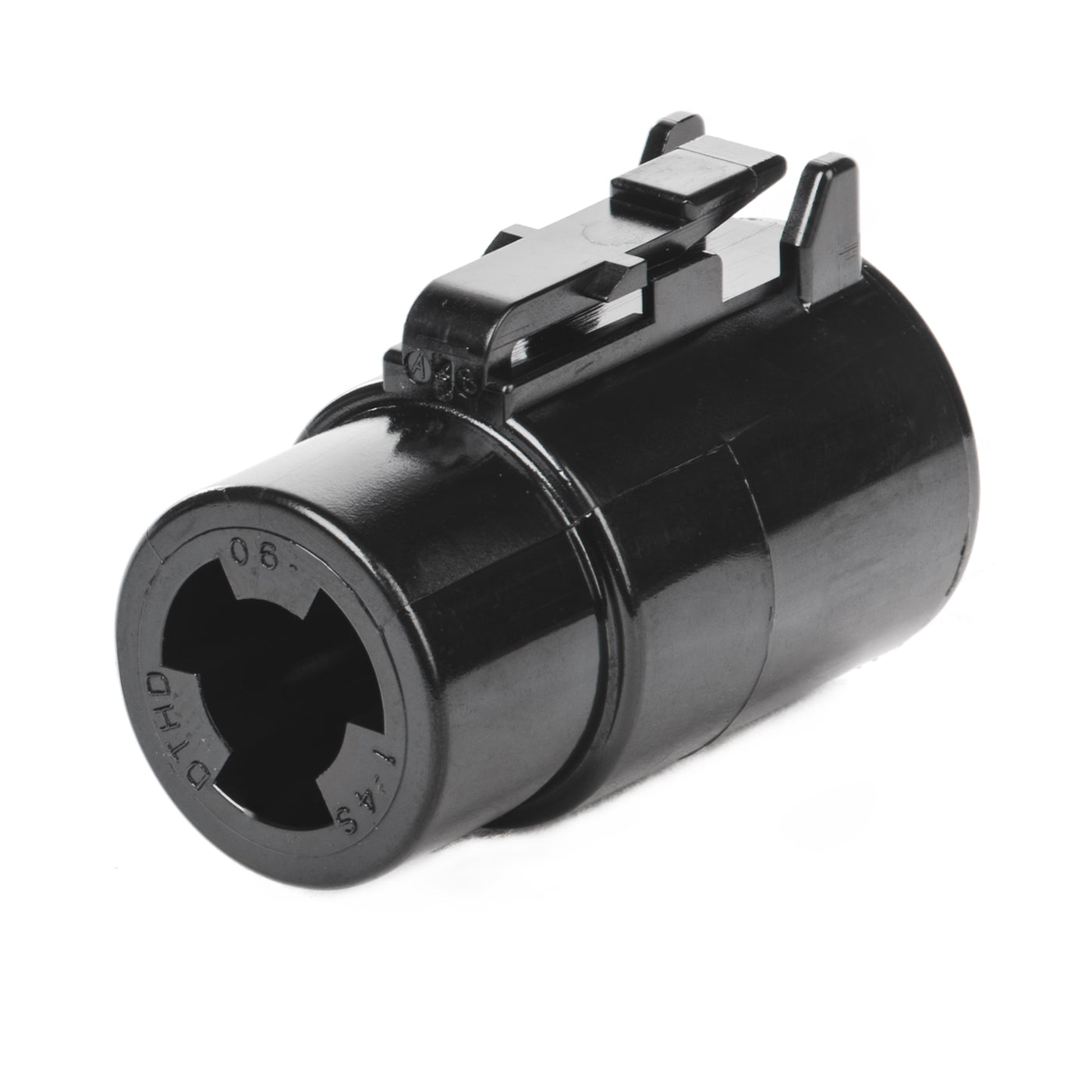

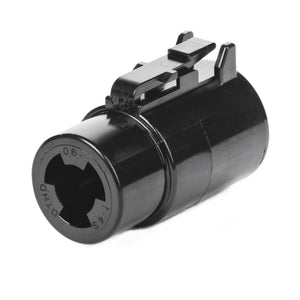

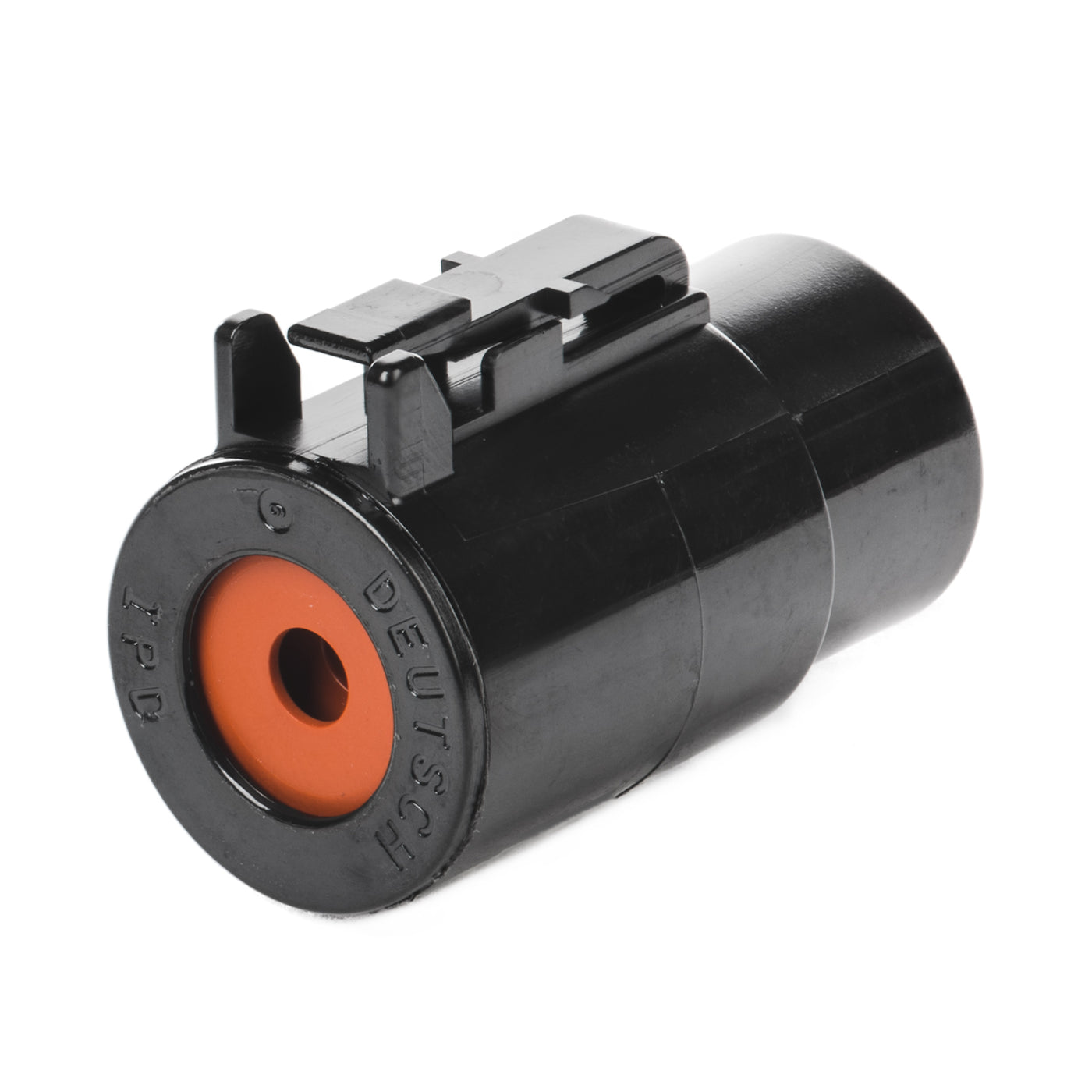

DTHD06-1-4S-E003 - DTHD Series - 4 Socket Plug - In-Line, End Cap, Black

Sku: DTHD06-1-4S-E003
Vendor: Deutsch
$10.10
Maximum quantity available reached.
Deutsch Logo

Deutsch DTHD

Deutsch developed the DTHD Series for those applications requiring a complete, environmentally sealed, single power circuit termination. DTHD plugs and receptacles can be permanently assembled with thermoplastic end caps that prevent removal of the silicone wire seal grommets. Designed for diesel engine, electronic fuel injectors, automatic transmissions, ABS brakes and other applications that involve fuel and oil exposure. These end caps provide the additional reliability required for critical wiring Circuits.

DTHD connectors are single terminal connectors for heavy duty applications. Easy to install, environmentally sealed and compact in size, they are a simple, field serviceable alternative to a splice. This DTHD plug takes a size 4 socket and is rated as 100 amps of continuous current. Black. The E003 modification provides a protective end cap on the back of the connector.

Part Number DTHD06-1-4S-E003
Series DTHD Series
Wire Size 6
Keyed No
Color Black
Material Plastic
Shape Circular
Connector Style Plug
Cavities 1
Contact Size 4
Current Rating 100
Holds Pin/Socket Socket
Modification End Cap
Flange/In-line/PCB Mount In-line
